Ultrasonic microphones as used in detectors and recording equipment have various failure modes depending upon the type of microphone and the amount of use outdoors.
MEMS Electric mircophones are very popular now, but they will degrade with exposure to moisture. Drying out can recover performance after an excessive saturation, however, the higher frequencies may not recover to the same extent as lower ultrasound (30-40kHz).
Because of this, it makes sense to test your equipment prior to a session of use, especially if it is to be left out in various conditions.

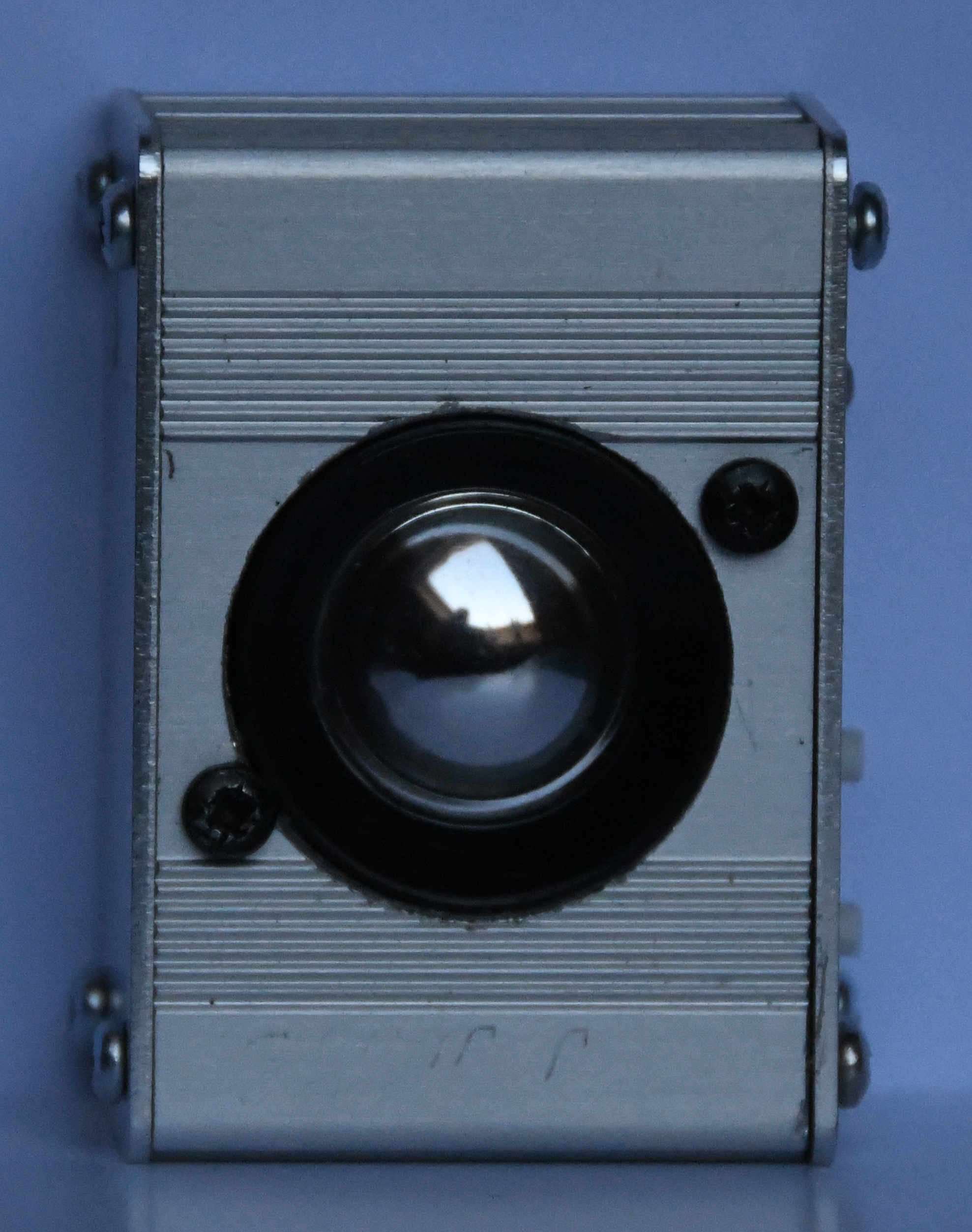

Introducing the Peersonic Bat Emulator
The Bat Emulator (previously knows as the Microphone Tester) has been enhanced to include the following modes -
- Microphone Tester just as before emitting a series of ultrasound signals and sequences to test microphone effectiveness over the spectrum 15kHz to 145KHz
- Bat sound emulator, bat calls are emulated for use in bat walk novice training etc, these are monotonic reproductions so not all bat calls can be emulated.
- Total novice mode – plays back signals from human audio range up to the ultrasonic, used to demostrate how different people ( eg youngsters) have better ultrasound sensitivity than us oldies.
- Micro-lure – A sequence of popular bat social calls can be used as a lure, this has not been extensively trialled, but if satifactory would make a very low cost lure.
Sound Gallery
Click thumbnails for extended view.
The Peersonic microphone tester is a programmable sine wave ramp generator so, as such, an additional feature has been added - Bat sound emulation - this emits the sounds from a few familiar UK species and makes an entertaining way to test your equipment before going out into the field. The emulation is not a WAV file playback - it would not fool an expert - but has been used for quick 5-minute training of novices on bat walks.
Peersonic Full Spectrum WAV File playback
Under redevelopment. Call or email for information.
- For use as an ultrasound training tool.
- Also used as a lure.
- BatWAV is currently on allocation due to supplier issues, always enquire.
The BatWav, as suggested in its name, will play back WAV file full spectrum recordings of bats or anything ultrasound at a sample rate of 384ksamples/second.
It may be powered by a laptop type power supply for office use when training students on recognition of bat calls. Social calls through to high frequency navigation calls may be played back using the tripod mounted speaker. In this case a rechargeable battery pack may be used.
Currently in use for bat detector training and as a lure it has been proven to be efficient and effective.
The speaker supports replay up to 100kHz which covers UK species as far as Greater Horseshoe.
A new speaker is at the R&D stage which will extend response up to 140kHz , allowing reproduction of Lesser Horshoe calls at 114kHz.
Note: It is illegal to disturb bats in the UK; they are protected. This includes flash photography, roost or habitat disturbance, and definitely acoustic interference, unless an appropriate licence is granted.
